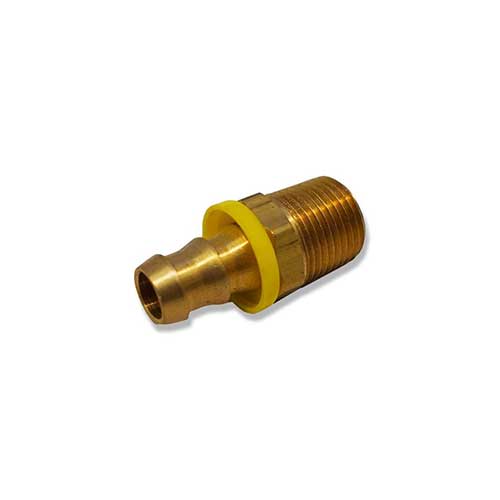

1/2″ Push Lock Fitting for Unloader Bypass

1/2″ Push Lock Fittings for Low Pressure Hoses are commonly used for the low pressure return line of an unloader. Install one end in the unloader bypass port and the other at the pump inlet in conjunction with the garden hose inlet adapter that includes a bypass port. Apply a small amount of lubricant to the barb and insert into your low pressure hose. A hose clamp is recommended for install at the barb and Teflon Tape is recommended for the NPT thread install.

• 1/2″ Hose Barb Inlet X 1/2″ Male NPT Outlet
• Max – 260 PSI
• Material – Brass with Plastic Low Pressure Collar
